Safety Cabinet Standards
Fire test
The temperature increase inside the cabinet should not exceed 180K or 200°C.
According to the time taken to reach this temperature, the cabinet will be classified as Type 15, 30, 60 or 90 min.
These different flammability classes allow leaving sufficient time for the staff to leave the laboratory and for the firefighters to get in before the stored flammable products may cause fire.
Each Emtez cabinet model has passed the compliance control according to standard EN14470-1 and it has the certificates of tests carried out by Bureau Veritas (BV).
Construction
The cabinet doors must close automatically in case of fire.
The side and rear walls must have the same construction and the same thickness.
The requirements of the standard cover the cabinet construction itself and its capacity to withstand external fire conditions (fire tests
carried out according to ISO 834-1 [1] and EN 1363-1). The tray volume must contain: at least 110% of the volume of the largest container stored in the cabinet or 10% of the total volume stored.
Signaling

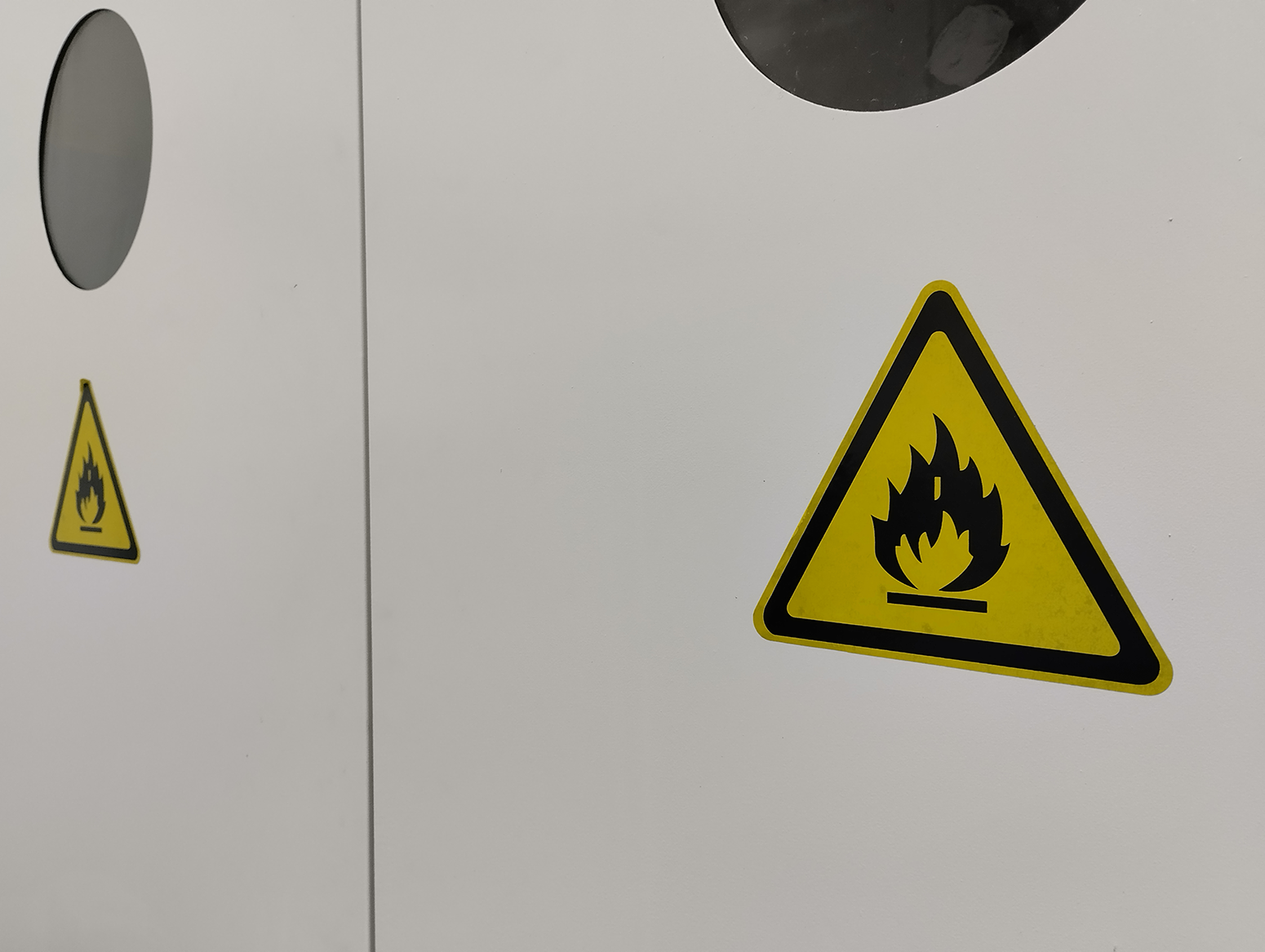

The cabinets must be equipped with suitable signals: standard pictograms complying with ISO 3864 (inflammables), maximum load per shelf, fire resistance of the model (15, 30, 60 or 90 minutes).
Quality Control
Safety cabinet manufacturing is submitted to a continuous and extremely rigorous check by Bureau Veritas. So twice a year, BV checks the production and verifies the quality and the manufacturing process.

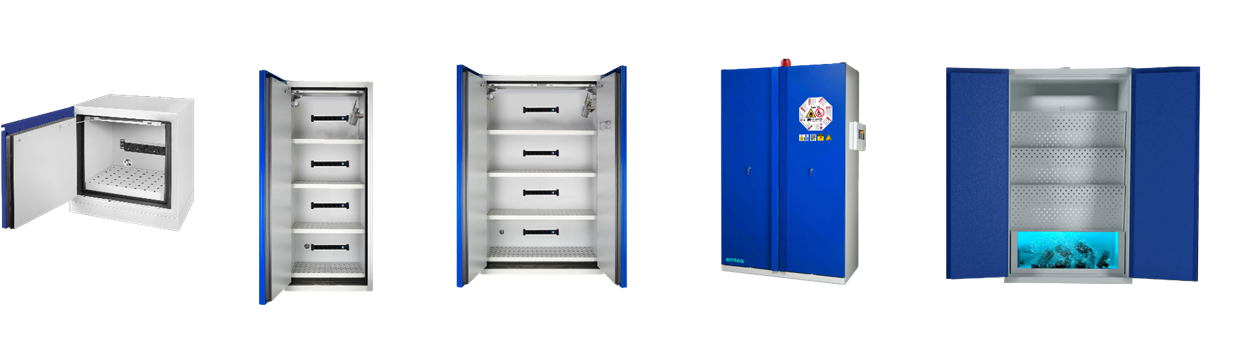

LithiumVault Charging Cabinets
Storage cabinets for lithium-ion batteries
Safely store your lithium-ion batteries with our range of 90-minute fire-resistant cabinets. Each cabinet is certified to EN 14470-1. Depending on the model, additional facilities are included for monitoring, notifying and suppressing potential incidents. Other models include alarm & sensors for measuring temperatures and the atmosphere to detect anything that may be regarded as abnormal. Alternative suppression systems FirePro are available to combat thermal runaways which would generally pose a massive risk without one of these cabinets. A control panel (CP) allows for the suppression and alarms to be monitored and controlled and set by people managing the cabinet which could prevent a problem from occurring at all.
The selections also include Quarantine series submerging stored batteries into the water Quarantine tank.
Manufactured from steel, providing a durable shell to protect your local environment. Rock wool insulation panels, certified non-combustible A2-s1-d0 per EN 13501-1, validated through destructive testing per EN 1363-1 for 90-minute fire resistance.

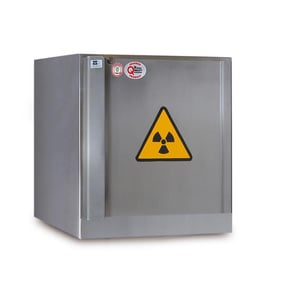

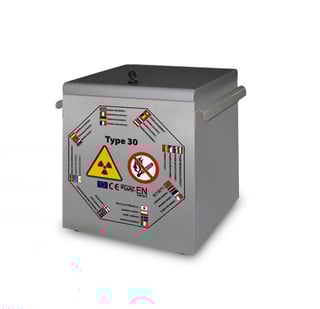

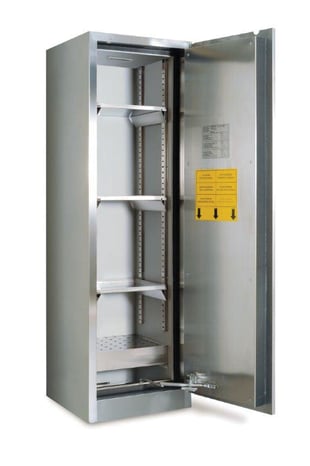

RadioVault Series
Storage cabinets for inflammables and radioactive products Certified according to EN14470-1 TYPE 90
Completely made out of stainless steel AISI304 with a thickness from 1 to 1.5mm, cold bent with a layer of lead - 2mm and 5mm thick lead available
Key Features:
Construction & Materials
Isolation achieved through high-density rock wool panels and calcium sulphate panels.
Internal finishing with melamine and lead panels (thickness varies between 2–5 mm depending on the radioactivity level of stored products – please contact Telko for details).
Structure designed for easy replacement of spare parts if necessary.

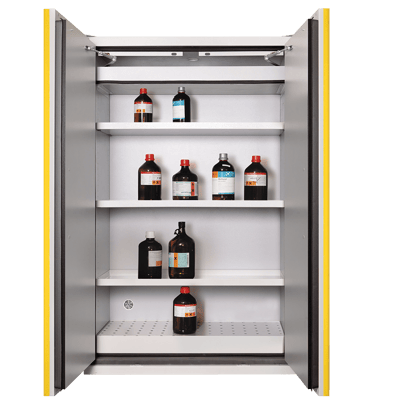

FireVault cabinets
Storage cabinets for inflammables
When it comes to storing flammable substances, there’s no room for compromise. For ultimate protection against fire, corrosion, and harmful fumes, all high- or low-flammable materials must be stored in certified fireproof cabinets with 90-minute fire resistance, compliant with EN 14470-1.
TYPE 90 fire-resistant cabinets deliver maximum safety and peace of mind.
Standards:
- EN 14470-1: Fire-resistant cabinets for flammable liquids
- EN 16121: Strength and durability for storage units
